Confocal fluorescence micrograph of a human kidney histological section originally stained with hematoxylin and eosin (H&E). A collecting duct of the kidney was imaged using autofluorescence in a Leica TCS SP8 Confocal Microscope – 10X objective, a 561nm excitation laser and “6_shades” LUT (ImageJ – Fiji). This micrograph shows the histological structure of the kidney where glomerular filtrate and tubular fluids are reabsorbed by structures, such as the Loop of Henle and the proximal and distal tubules. (Sergio A. Pineda-Castillo, Ph.D. student in Biomedical Engineering).

Advanced Light - Confocal Microscopes

Advanced light microscopy is primarily served by a LEICA SP8 Upright CLS/multiphoton/FLIM microscope, and a Keyence-VHX7000 digital microscope., and a Zeiss Axiovert reflected light microscope/metallograp. There are also a range of other smaller LMs, including a Leica epifluorescent stereo microscope (FM/LM) for higher level routine stereo imaging and many small desktop microscopes for casual use.

Email Dr. Tingting Gu for advanced light microscopy consultations or for materials microscopy and metallography contact Dr. Julian Sabisch.

Log into iLab to see the schedule and availability.

For a graphical overview of our ALM capabilities, refer to the SRNML ALM Capabilities (PDF).

We're happy to answer any questions and work with you to acquire new capabilities.

Log into iLab

Leica SP8 Confocal Microscope

Photos by Travis Capterton

Located in Richards Hall room 9 | Check Leica SP8 confocal Availability

The flagship optical microscope at OU; this microscope is a dual system with both visible laser scanning confocal microscope and multi-photon on a single platform. It is an upright system with motorized stage that is ideal for traditional slide mounts and small animal imaging.

Lasers

Visible laser:
GaN laser: 405nm
Argon laser: 458, 476, 488, 496
DPSS laser: 561nm
HeNe: 633nm

Multi-photon laser:
Coherent Chameleon Ti: Sapphire laser: tunable from 680nm to 1080nm

Repetitive rate: 80MHz

Detectors

3 PMT detectors: robust photomultiplier tube (PMT) detectors for bright signals.
3 HyD detectors: highly sensitive hybrid GAsP/APD (HyD) detectors for low light imaging.

Objectives

Dry objectives
5X  0.15 NA Air WD 13.70 mm HCX PL Fluotar 
10X 0.30 NA Air WD 11.00 mm HCX PL Fluotar 

Dipping objectives
25X    0.95 NA water                 WD 2.5mm    HCX IRAPO L 
40X    0.80 NA water U-V-I      WD 3.30 mm    HCX APO L 
63X     0.90 NA water  U-V-I     WD 2.2mm   HCX APO L 

Immersion objectives
20X     0.75 NA Oil, Glycerol     WD 0.68 mm       HCX PL APO CS2
40X      1.10 NA Water                WD 0.65 mm       HCX PL APO CORR CS2 
63X      1.30 NA Glycerol            WD 0.22 mm       HC PL APO CORR CS2
63X      1.40 NA Oil                     WD 0.14mm        HC PL APO
100X    1.40 – 0.70 NA Oil          WD 0.09mm        HCX PL APO CS

EpiFilter Cubes

DAPI, FITC, TRITC

Filters for HyD-RLD

FiltersBeam splitter Emission CH1 Emission CH2
FITC/TRITC 560 525/50 585/40
CFP/YFP 505 483/32 535/30

FLIM/FRET Module

PicoQuant TSCPC system 2 channels

Software

Leica Application Suite-Advance Fluorescence (LAS AF)

Keyence VHX-7000 Digital microscope

Professor Wilson Merchán-Merchán and PhD Candidate Sooraj Patel (Ghamarian Lab) operating the Keyence VHX-7000 Microscope.

Contact: Dr. Tingting Gu

The Keyence digital microscope is both easy to use and powerful. The microscope features transmitted and reflected light sources, a fully motorized stage, software for 2D / 3D measurements, montaging, Z-stacking, and many other acquisition/ analysis options. We also have polarizer and analyzer options for reflected and transmission polarized light microscopy.

Zeiss Axiovert 200 M reflected light microscope / metallograph

Example micrograph of a brass fitting showing excellent grain contrast. This demo sample was prepared for OMS's Kid's Night with Microscopes event.

Example micrograph of steel rebar showing excellent grain contrast with commonly interspersed carbides increasing hardness.. This demo sample was prepared for OMS's Kid's Night with Microscopes event.

The Zeiss Axiovert 200M is available free of charge to OU researchers

Location: NML 209 | Check Zeiss Axiovert 200M Availability

Low skill curve for use, with a wide range of features and imaging modes:

Fully motorized xyz stage.
1229 x 968 resolution camera
Large area montaging and automated image stitching
Brightfield and darkfield imaging needed for grain size analysis and surface quality measurements respectively.
up to approximately 3000x fully optical magnification
Axiovision Pro software for acquisition and analysis.

Other visible light and fluorescence microscopes

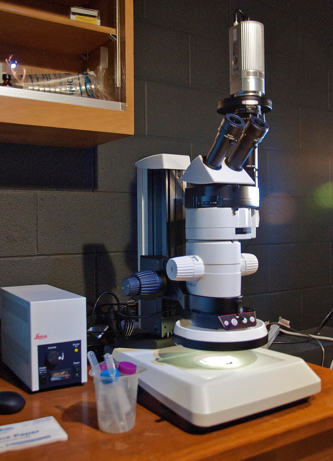

Leica MZ 10F epiflourescent stereomicroscope

Location: NML 207 | Leica MZ 10F Availability

Stereomicroscope with switchable fluorescent or bulb sources and digital imaging.

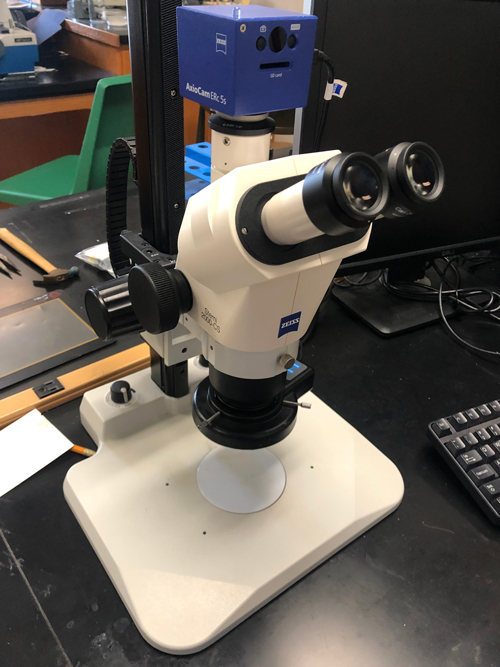

Zeiss 2000-CS steromicroscope

Location: NML 206 | Zeiss 2000-CS Availability

Very easy-to-use stereomicroscope with ring light and color digital imaging system with calibrated scale, 6.5x - 62.5x magnification.

Available to use for no charge.

Operating procedure (.pdf)

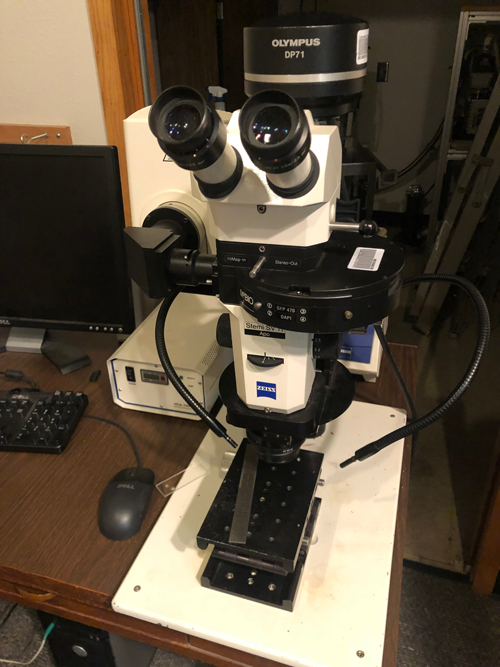

Zeiss Stemi SV11

Location: NML 205 | Zeiss Stemi SV11 Availability

Stereomicroscope with switchable fluorescent or bulb sources and basic digital imaging.

Available to use for no charge.
